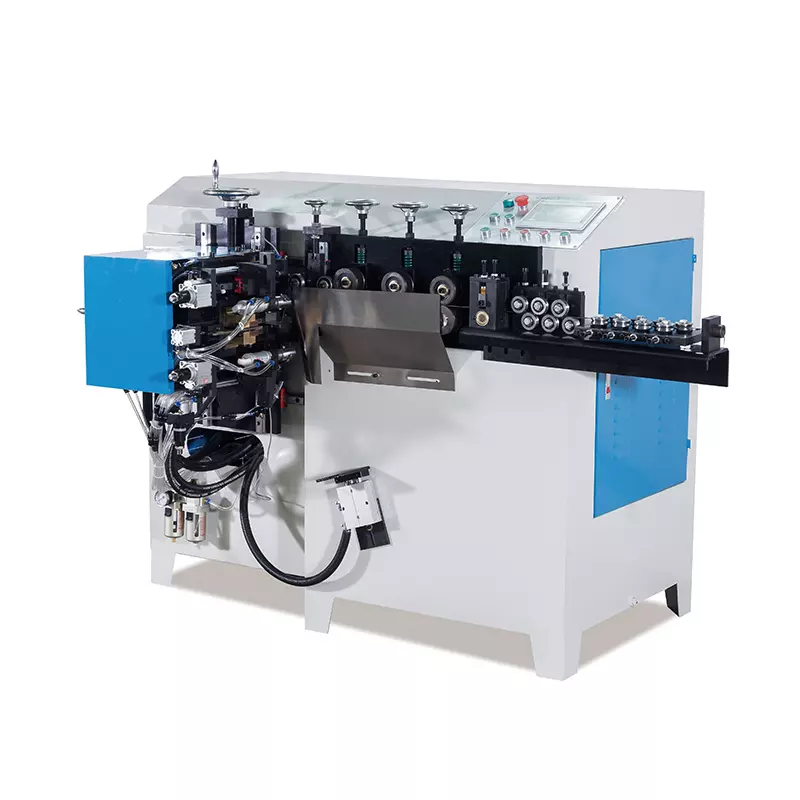

Model: R-6-300
Input voltage: 380V(3-phase)
Grid frequency: 50Hz
Rated power: 35KVA
Cooling method: Natural cooling
Gas consumption: 250L/min
Air source pressure: 0.6-0.8MPa
Steel wire diameter: 2.0mm-6mm
Maximum ring diameter :500mm
Minimum ring diameter r: a. 70mm (wire diameter less than 4mm) b. 90mm (wire diameter 2mm - 5mm) c. 105mm (wire diameter 1.5mm- 6mm)
Output: Approximately 1,200 pieces per hour (for rings with a diameter of 150mm)
O-ring diameter tolerance: less than 0.3mm
Weight: 630KG
Features
An independently developed circular welding control system
The intelligent "S" -shaped speed curve, rotary encoder and servo motor encoder form a fully closed-loop wire feeding control system, ensuring that the diameter error is less than 0.3mm, completely solving the problem of ring diameter accuracy of traditional mechanical or hydraulic core-making machines
The high precision also stems from the excellent wire feeding method. The wire feeding system is composed of imported servo and imported planetary gear reduction mechanisms. It should be particularly noted that the wire feeding wheel feeds wire in a "dual drive" mode
The welding system is equally stable and reliable, with imported moving parts, and its performance is far superior to that of ordinary pneumatic butt welding machines
It is suitable for ring forming and butt welding of low, medium and high carbon steel, spring steel and galvanized steel. If equipped with a TIG welding unit, it can perform circumferential and butt welding on stainless steel and titanium
Although the o system is complex, it is very simple and easy to use. The human-machine interface is clear at a glance. "Running code" can help operators identify any mistakes in the operation
In conclusion, this equipment is stable and reliable, time-saving and labor-saving. Generally, the investment can be recovered from the savings in labor within three years.
The CNC fully automatic coiling machine (also known as the coiling machine) is a specialized equipment used for rolling various types of steel wires, iron wires, stainless steel wires, and non-ferrous metal wires (round wires, square wires, flat wires) into circles, semi-circles, or arcs at any Angle (concentric Angle). It is one of the dedicated devices for processing and production in the hardware and iron wire industries.
Place the entire coil of iron wire into the iron wire frame, take one end of the wire and pass it through the designated hole of the coiling machine. Set the wire circumference value, quantity and wire speed according to the specifications of the coiling product. Then turn on the switch and the coiling machine will operate automatically. The motor feeds the material and the pneumatic cutting is used. When the designated task is completed, the coiling machine will automatically stop.
The controller adopts Mitsubishi PLC from Japan. The operation panel features a human-machine dialogue interface with both Chinese and English (optional) display. The motor is an imported servo motor. Products come out immediately when the motor starts. The no-load loss is equivalent to zero. The fixed-length accuracy is high. When the line length accuracy error exceeds 0.5mm, the equipment will automatically alarm and shut down to reduce unnecessary wire loss.
Our factory specializes in manufacturing hardware welding equipment, fully automatic program-controlled coil rolling machines, fully automatic program-controlled single-point welding machines for brackets, complete sets of production equipment for mesh covers, welding production lines and other mechanical equipment. It is applicable to the production of metal wire household items, including kitchenware, bathroom supplies, daily utensils, garden tools, etc. Specifically, such as wine bottle racks, laundry baskets, clothes hangers, sundries racks, fruit basket racks, fan grilles, etc.
